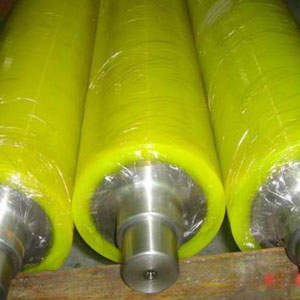

Pu Coated Roller
Pu Coated Roller
PU Coated Rollers provide excellent abrasion resistance, strong grip, high load-bearing capacity, and reliable performance for demanding industrial applications.
We manufacture PU Coated Rollers in different diameters, face lengths, hardness levels, coating thicknesses, shaft designs, and surface finishes to meet specific operational requirements. Our precision polyurethane coating, bonding, machining, and grinding capabilities ensure uniform hardness, accurate dimensions, smooth rotation, and strong PU-to-metal adhesion. Each roller undergoes strict quality inspection to ensure wear resistance, tear strength, dimensional stability, chemical resistance, and long service life.
Applications:
- Printing Industry
- Textile Processing
- Paper Handling
- Packaging
- Material Conveying
Technical Specifications
| Specification | Details |
|---|---|
| Diameter Range | 50 mm to 720 mm |
| Face Length | Up to 5000 mm / Custom length available |
| Coating Material | Polyurethane – Polyester or Polyether based |
| Core Material | Mild Steel / Stainless Steel / Aluminium |
| Shaft Material | MS / EN8 / EN9 / Stainless Steel |
| Hardness Range | 40 to 95 Shore A / Up to 75 Shore D |
| PU Coating Thickness | Customised according to load and application requirements |
| Temperature Range | Approximately –30°C to 100°C, depending on the PU compound |
Key Benefits
Excellent abrasion resistance reduces wear during continuous operation
High load-bearing capacity supports demanding industrial applications
Strong grip ensures controlled material feeding and movement
Good tear and impact resistance improves roller durability
PU coating maintains dimensional stability under pressure
Resistant to oils, grease, and selected industrial chemicals
Custom hardness, coating thickness, grooves, and surface finishes available
Key Features
High-Wear PU Coating
Provides excellent resistance to abrasion, tearing, impact, and continuous surface friction.
Strong Grip and Traction
Supports controlled material movement while reducing slipping during operation.
High Load-Bearing Strength
Maintains stable performance under pressure, heavy loads, and demanding industrial conditions.
Custom Hardness and Finish
Available in different Shore hardness levels, coating thicknesses, grooves, profiles, and surface textures.
