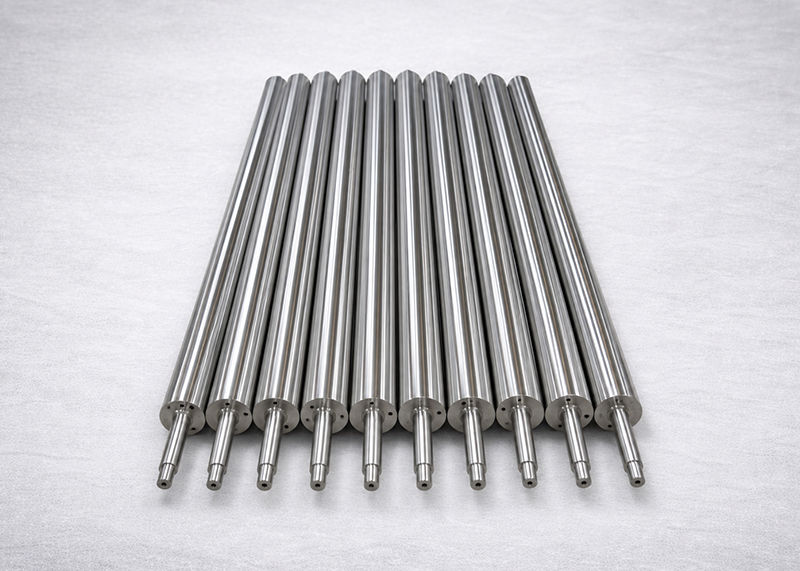

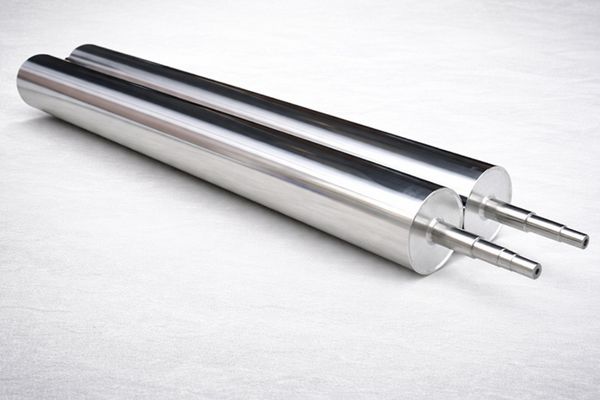

Chrome Plated Rollers


Chrome Plated Rollers
Chrome Plated Rollers provide superior surface hardness, excellent wear resistance, corrosion protection, and smooth performance for demanding industrial applications.
We manufacture Chrome Plated Rollers in different diameters, face lengths, shaft designs, plating thicknesses, and surface finishes to meet specific operating requirements. Our precision machining, grinding, polishing, and hard chrome plating capabilities ensure accurate dimensions, uniform coating, balanced construction, and a smooth working surface. Each roller undergoes strict quality inspection to ensure high hardness, low friction, corrosion resistance, stable rotation, and long service life.
Applications:
- Printing Industry
- Textile Processing
- Paper Handling
- Packaging
- Material Conveying
Technical Specifications
| Specification | Details |
|---|---|
| Diameter Range | 50 mm to 720 mm |
| Face Length | Up to 5000 mm / Custom length available |
| Base Roller Material | Mild Steel / Carbon Steel / EN8 / Alloy Steel |
| Shaft Material | MS / EN8 / EN9 / Stainless Steel |
| Chrome Plating Type | Industrial hard chrome plating |
| Chrome Plating Thickness | 20 to 100 microns / Custom thickness available |
| Surface Hardness | Approximately 850 to 1100 HV |
| Surface Finish | Precision ground, polished, matte or mirror finish |
Key Benefits
Superior surface hardness provides excellent wear and scratch resistance
Smooth chrome finish reduces friction and material buildup
Strong corrosion resistance protects against moisture and oxidation
Improves roller durability under continuous industrial operation
Maintains accurate dimensions and consistent surface performance
Easy to clean, maintain, and restore through re-chroming
Custom plating thickness and surface finishes available
Key Features
Hard Chrome Plated Surface
Provides high surface hardness with excellent resistance to wear, scratches, and friction.
Precision Ground Finish
Ensures smooth material movement, accurate dimensions, and consistent roller performance.
Corrosion-Resistant Protection
Protects the roller surface against moisture, oxidation, and selected industrial chemicals.
Custom Plating and Finish
Available in different chrome thicknesses, diameters, face lengths, shaft designs, and surface finishes.
